18 Essential Crane Signals: The Complete OSHA Guide

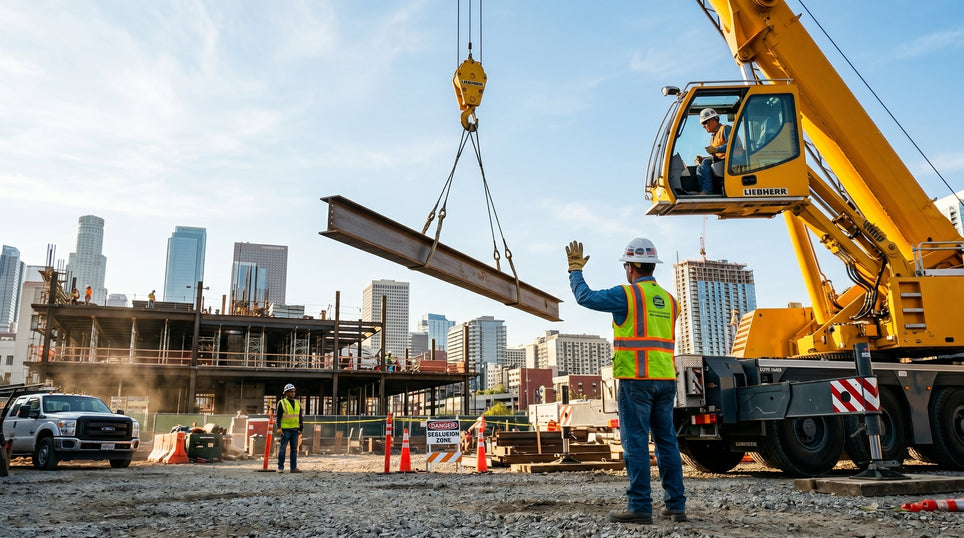

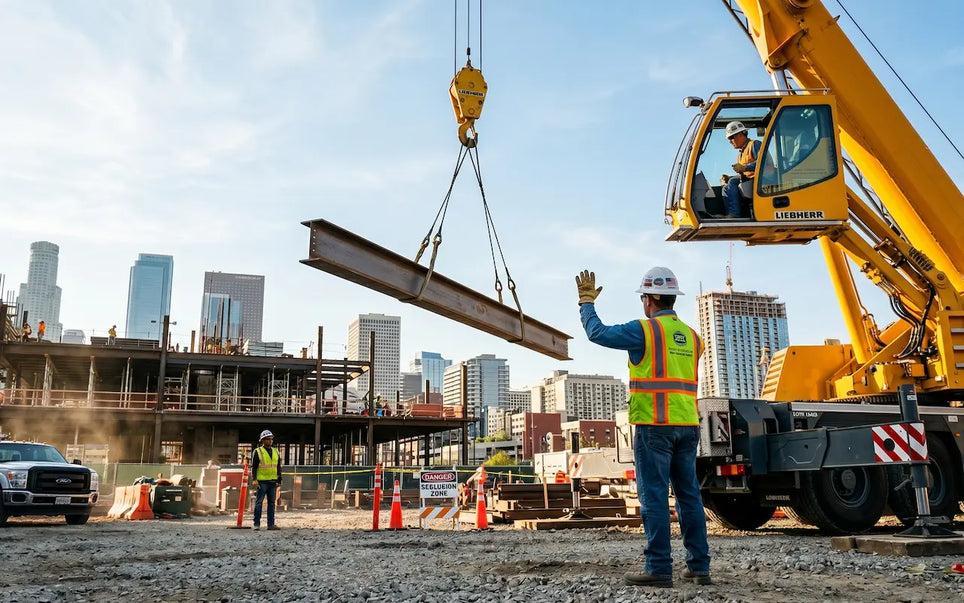

On a busy construction site, the noise of heavy machinery makes verbal communication nearly impossible. When a crane hoists a multi-ton load overhead, clear communication is critical. This is why standard crane signals are the essential communication method on job sites. They provide a precise, silent, and universal way to guide crane operations safely.

Whether operating a hydraulic mobile crane, a crawler unit, or a tower crane, mastering standard hand gestures, voice protocols, and regulatory requirements prevents catastrophic site accidents and protects lives.

What Are Crane Signals?

Crane signals are standardized physical gestures, radio commands, or hardwired voice transmissions used to direct a crane operator during lifting operations. They bridge the communication gap when distance, engine noise, structures, or weather prevent direct verbal instruction.

Every signal specifies a single, unambiguous movement—such as hoisting, lowering, swinging the boom, or stopping all motion. Because an incorrectly interpreted signal can lead to dropped loads, rigging failure, or structural collapse, the U.S. construction industry operates under a unified standard enforced by the Occupational Safety and Health Administration (OSHA) and the American Society of Mechanical Engineers (ASME B30.5).

The OSHA Standard Method of Crane Signaling

Under OSHA 29 CFR 1926 Subpart CC, job sites cannot use unapproved, improvised signals. Operations must follow the standard method of crane signaling to ensure that a command given in one state carries the exact same meaning in another.

When is a Designated Signal Person Required?

OSHA 29 CFR 1926.1419 dictates that a designated signal person must be assigned whenever:

• The point of operation or path of the load is not in full view of the crane operator.
• The equipment is moving in a direction where the operator cannot see what is in the line of travel.
• Site-specific safety hazards, high foot traffic, or blind spots lead the operator or site supervisor to determine a signal person is necessary.

OSHA Signal Person Qualifications (29 CFR 1926.1428)

An individual cannot act as a signal person without formal qualification. Employers must verify and document that the signal person has passed both a written and practical test demonstrating:

• Basic understanding of crane dynamics, boom deflection, and load swinging capabilities.

• Complete mastery of standard hand and voice signals.

• Demonstrated ability to recognize hazards and apply emergency procedures.

Complete Guide to Essential Crane Hand Signals and Meanings

Standard hand signals must be executed deliberately with full arm extensions so the operator can clearly observe them through cab windows or across long distances. Below is the full standard directory categorized by function.

1. Vertical Movement (Hoist & Load Control)

2. Boom and Structure Controls

3. Telescoping Boom Signals

• Extend Telescoping Boom (Telescope Out): Hands in front of the waist, fists closed, thumbs pointing outward away from each other.

• Retract Telescoping Boom (Telescope In): Hands in front of the waist, fists closed, thumbs pointing inward toward each other.

4. Travel and Track Controls

• Travel (Mobile Cranes): Arm extended forward, hand open and slightly raised, making a pushing motion in the direction of travel.

• Trolley Travel (Tower Cranes): Palm up, fingers closed, thumb pointing in the direction of intended trolley movement.

• Crawler Travel (Both Tracks): Rotate closed fists in front of the body in a circular motion around each other. Rotate toward yourself for forward; rotate away for reverse.

• Crawler Travel (One Track): Lock the track on the side indicated by a raised, motionless fist. Rotate the opposite fist in front of the body to direct the turning track.


5. Precision and Stopping Commands

• Move Slowly / Inching: Place one hand motionless in front of the hand giving any motion signal (e.g., placing a flat hand over a hoisting motion indicates "Hoist Slowly").

• Stop: Extend one arm horizontally to the side, palm facing down, and swing the arm back and forth horizontally.

• Emergency Stop: Extend both arms horizontally to the sides, palms facing down, and swing both arms back and forth rapidly. Rule: Anyone on the job site who spots an immediate safety hazard can give an Emergency Stop, and the operator MUST obey it immediately.

• Dog Everything: Clasp both hands together tightly at waist level. Indicates the operator should set all mechanical brakes and hold the crane in its current state.

Voice and Radio Signals for Blind Lifts

A blind lift occurs when structural barriers, elevation changes, or distance prevent the crane operator from seeing the load or landing site. When visual contact is lost, hand gestures must be replaced or supported by dedicated radio communication (or hardwired phone systems).

OSHA Rules for Radio Communications

• Dedicated Channel: Radio testing must take place prior to operations on a dedicated, non-interfered frequency.
• Standardized 3-Part Voice Command:

• Continuous Contact Rule: The signal person must continuously speak or transmit a signal during the move. If the crane operator loses radio audio or experiences static for even a split second, they must bring all crane movement to an immediate stop.

Site Positioning and Safety Best Practices

Even correct signals fail if given from an unsafe location. Qualified signal persons follow strict positional rules:

• Maintain Direct Line of Sight: Stand in full view of the operator, clear of pinch points, swing radiuses, and suspended loads.

• Wear High-Visibility Apparel: Use high-visibility gloves, vests, and arm sleeves that contrast sharply with the background environment.

• One Signal Person Rule: Only one designated individual gives directional commands to the operator during a lift. The only exception is an Emergency Stop, which can be given by any worker who detects danger.

• Account for Site Dynamics: Factor in wind forces, load swing, boom deflection, and overhead power line clearances (maintaining a minimum 10-foot clearance for lines up to 50kV).

Standardize Compliance and Training

Mastering standard crane signals protects job sites, prevents regulatory penalties, and ensures lifting operations stay on schedule. Proper execution requires documented testing and hands-on practice.

If you are looking to certify your crew or advance your career, enroll in our Qualified Rigger & Signal Person (Construction) course. This program provides comprehensive instructional training, practical evaluations, and recognized credentialing to help you meet all OSHA signal person requirements and maintain complete compliance across your worksites.
